The HDC-RH221UHD and HDC-RH421UHD are two-input receivers with EDID emulator for sending HDMI, DVI, and HDBaseT input signals at up to 4K@60 over a Category cable without compression or processing.
Input video signals are converted to HDBaseT format and can be transmitted up to 100 m (328 ft.); 1080p (24 bit) video signals can be sent up to 150 m (492 ft.) in Long reach mode.

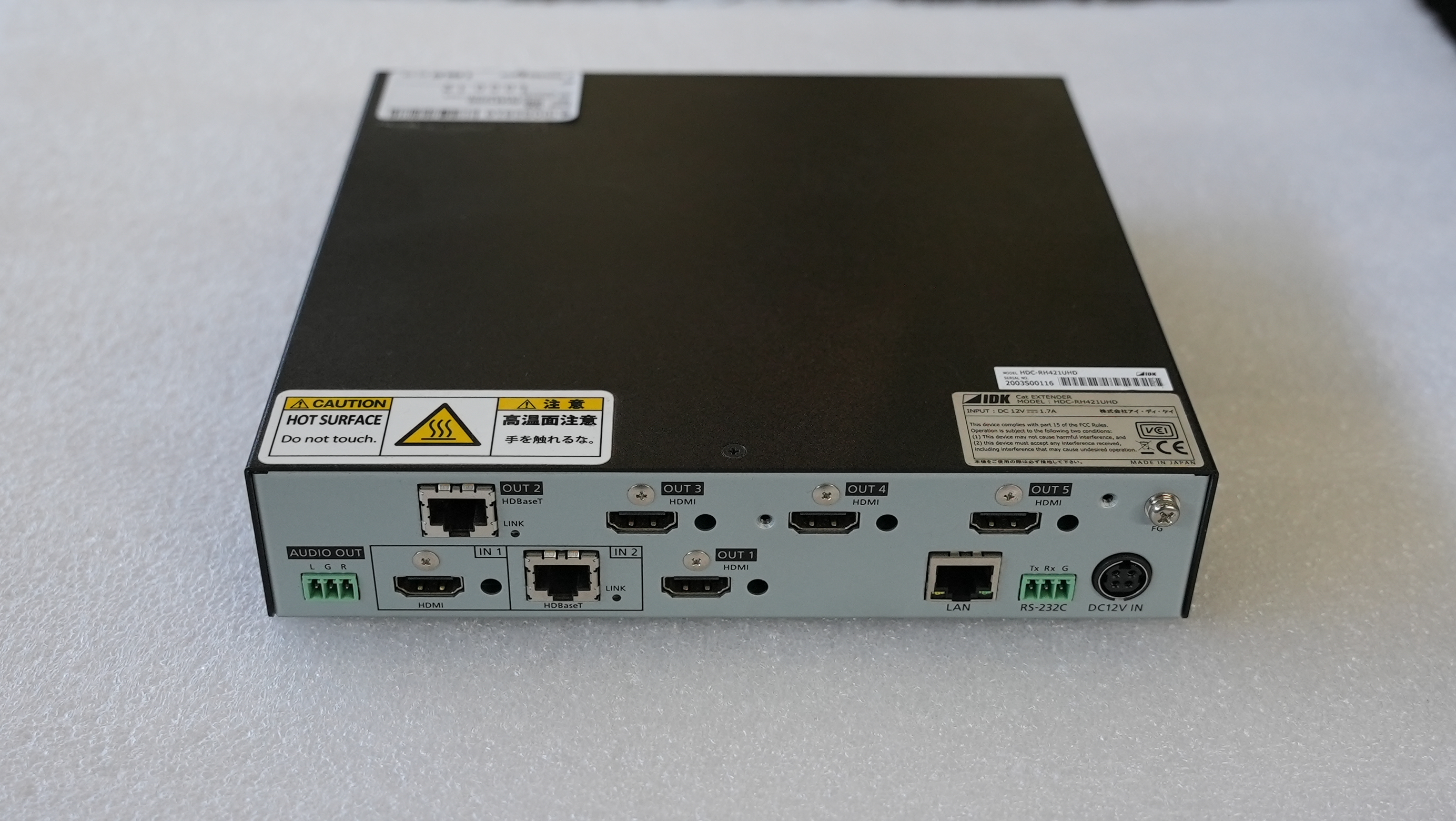

The HDC-RH221UHD/HDC-RH421UHD includes two/four HDMI outputs and one HDBaseT output. The HDMI OUT1 enables down conversion outputting

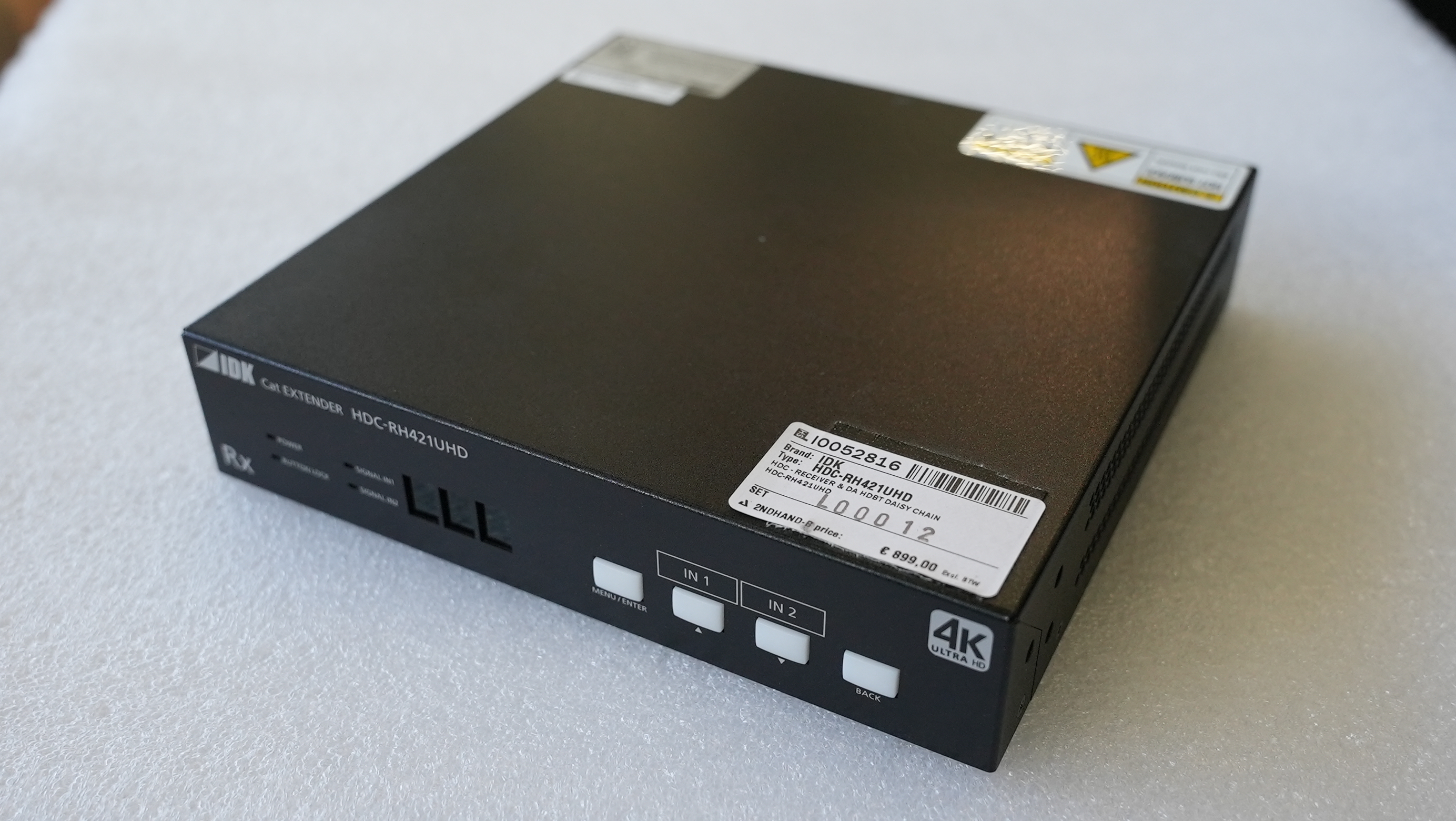

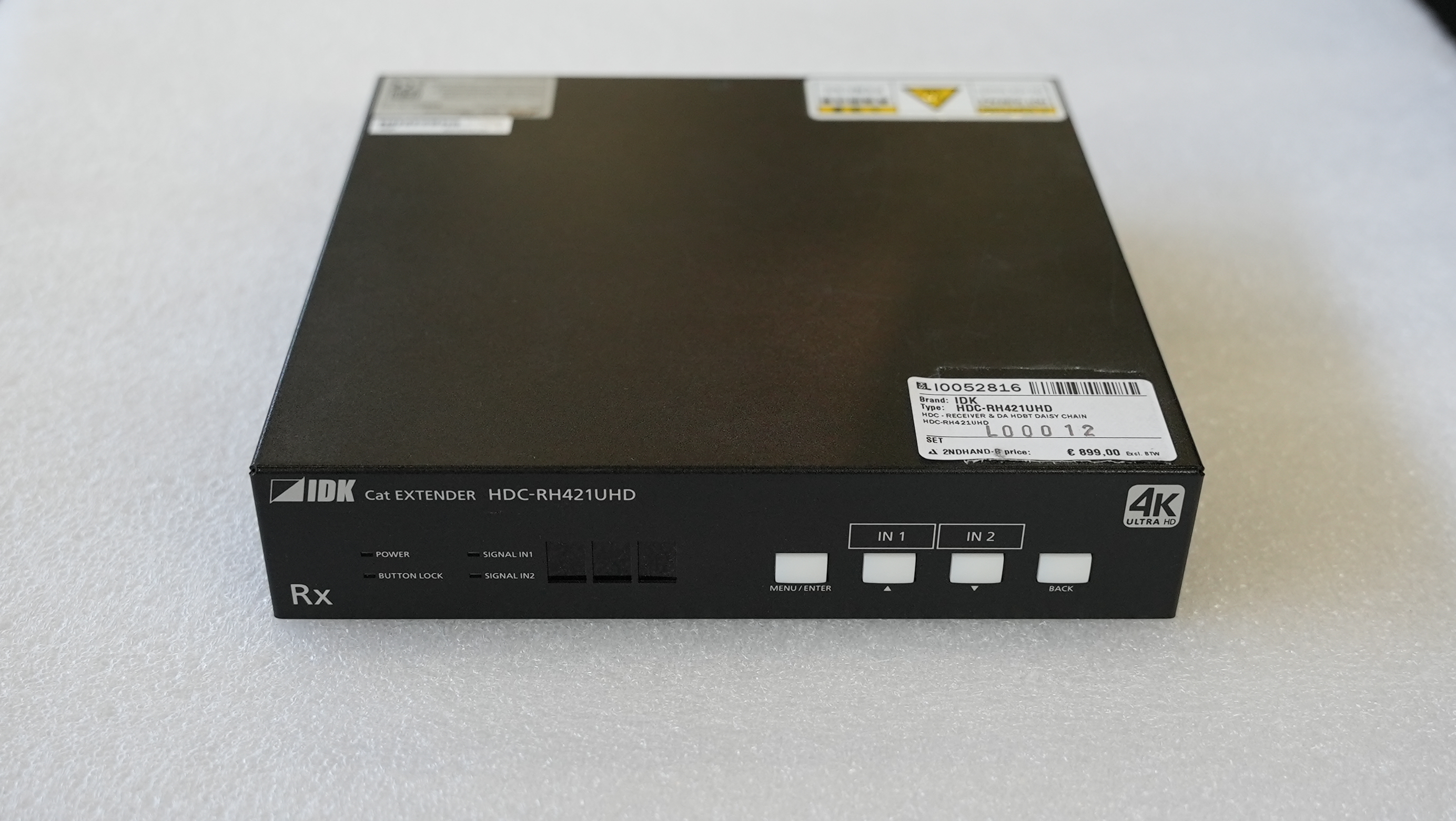

4K input video at 1080p automatically or manually depending on sink device status. The two video inputs can be controlled by the front panel or an external controller. For video signal that is distributed to an HDMI/DVI and HDBaseT simultaneously, video/audio can be off for each output.
The HDC-RH221UHD/HDC-RH421UHD also features Daisy chain for extending and distributing video, audio, and control signals. In addition, digital audio
signals can be de-embedded onto the analog output signals. It supports bidirectional RS-232C communication and LAN transmission.
Internal Web pages provide system status for troubleshooting and device monitoring using a browser.
- 2×1 switching (HDMI/HDBaseT)
- 1×5 DA (4×HDMI and 1×HDBaseT)
- Up to 4K@60 (4:4:4)
- HDCP 1.4/2.2
- Up to 100 m (CAT5e/CAT6)
- Up to 150 m (Long Reach Mode)
- Daisy Chaining
